Description
UltraSharp 27 4K USB-C Monitor: U2720Q
Features and Design
Color like no other
Exceptional color: Get wide color coverage with 95% DCI-P3 – which covers approximately 25% more color space than sRGB – for true color reproduction. This monitor also offers 99% sRGB and 99% Rec 709 color coverage.
Outstanding color depth: With and outstanding color depth of 1.07 billion colors (that’s 64 times more color depth than standard monitors), excellent peak brightness and a high contrast ratio of 1300:1, images are displayed in true-to-life color with clear details even in dark shadows or brightly lit areas. Be prepared for better color gradation and precision in more shades on this VESA DisplayHDR™ 400 monitor.
True-to-life details: 4K UHD (3840 X 2160) resolution with a high pixel density of 163ppi gives you four times more details than Full HD.
Accurate color, out of the box: Your monitor is factory calibrated at 99% sRGB to an accuracy of Delta-E less than 2 for accurate colors right from the start.
The power of USB-C

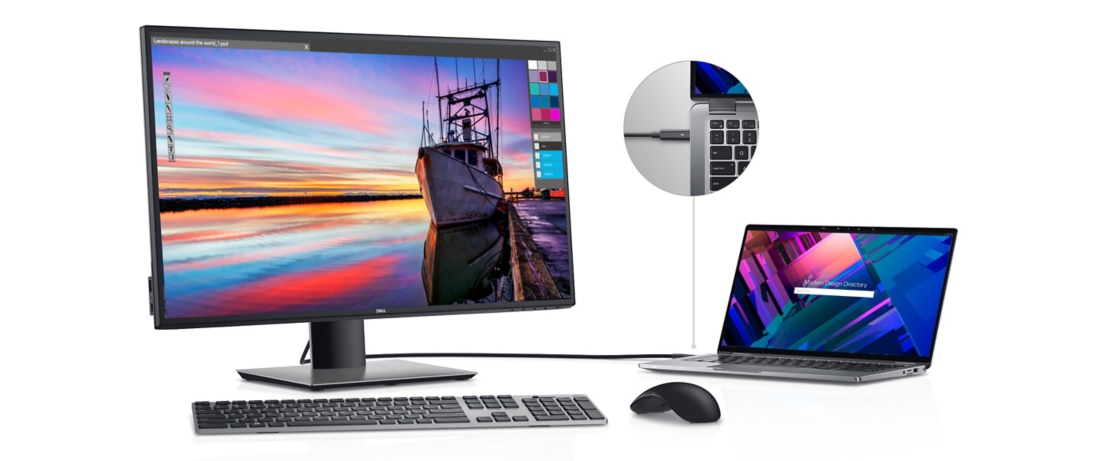

USB-C connectivity: Get up to 90W of power delivery (the highest power delivery in its class*) via USB-C, so you can keep your laptop battery charged and enjoy uninterrupted productivity. Also, speed up the time it takes to transition from your desk with a single cable that transmits power, data and video—all at once.
Get to work faster: Conveniently placed, quick access side ports let you easily charge and connect to a variety of devices*.
Improved Dell Display Manager
Productive at every level: Dell Display Manager’s (DDM) Easy Arrange feature lets you quickly tile and view your applications side by side across one or more connected screens for multitasking efficiency. And with the improved DDM, you’ll get even more preset layouts.
Seamless transitions: The auto-restore feature remembers where you left off, so applications will go back to where you left them, even after you’ve unplugged.
The key to convenience: Shortcut keys can save you even more time, letting you easily configure your display management settings so you can get to work faster.
More ways to manage: Asset management reports allow IT managers to quickly capture and track monitor information as well as configure multiple monitors at once through a single setup.
Expanded compatibility: With support for multiple operating systems*, Dell Display Manager helps you stay productive however you work.
Crafted for productivity
More room to work: Make the most of your limited desk space with this compact base.
InfinityEdge design: Work with an uninterrupted view across multiple screens with this virtually borderless design. And, when you use a Dell dual monitor setup, you can increase your productivity by up to 21%.*
Flexibility for all-day comfort: With the ability to tilt, swivel, pivot and adjust the height of your monitor to fit your needs, you can stay comfortable all day.
Connectivity Options
1. AC power port | 2. Security lock slot | 3. HDMI port | 4. DP port | 5. USB-C/DisplayPort | 6. Audio line-out port | 7. USB downstream ports (2) | 8. Stand lock | 9. USB downstream port | 10. USB-C downstream portCables Included:
1. Power cable | 2. Type-C cable (C to C) | 3. USB-C cable (C to A) | 4. DisplayPort cable (DP to DP)
Peace of mind, guaranteed
Tech Specs
Display
Diagonal Viewing Size:
68.47 cm
27 inches
Preset Display Area (H x V)
596.74 mm x 335.66 mm
23.49″ x 13.21″
200301.7 sq-mm (310.47 sq-inch)
Panel Type:
In-Plane switching Technology
Display Screen Coating
Anti-glare treatment of the front
polarizer (3H) hard coating
Maximum Preset Resolution
3840 x 2160 @ 60Hz
Viewing Angle
178° vertical / 178° horizontal
Pixel Pitch 0.1554 mm x 0.1554 mm
Pixel Per Inch (PPI) 163
Contrast Ratio 1300 to 1 (typical)
Aspect Ratio 16:9
Backlight Technology LED
Brightness 350 cd/m2 (typical)
Response Time 5 ms gray to gray in Fast mode
8 ms gray to gray in Normal mode
Audio Output
1 x Audio line-out***
***Headphone Use is not supported for the audio line out connector
Connectivity
1 x DP 1.4 (HDCP 1.4/ HDCP 1.2)
1 x HDMI 2.0 ( HDCP 1.4/ HDCP 1.2)
1 x USB Type-C (Alternate Mode with Display Port 1.4, USB 3.1 upstream port, Power Delivery upto 90W*)
2 X USB 3.0 Downstream ports
1 x USB 3.0 with B.C 1.2 charging Adaptability of 2 A ( Max)
1 x Analog 2.0 Audio Line out (3.5 mm Jack)
1 x USB Type-C Downstream charging port with charging Capability upto 3 A ( Max)
* Display port and USB Type-C ( Alternate mode with DisplayPort 1.4)
Security
Security lock slot (cable lock sold separately)
Anti-theft stand lock slot (to lock stand to monitor using screw)
Dimensions & Weight
Height with stand (Compressed ~ Extended)
395.2 mm ~ 525.2 mm
15.56″ ~ 20.68″
Width with stand
611.3 mm
24.07″
Depth with stand
185.0 mm
7.28″
Height without stand
356.0 mm
14.02″
Width without stand
611.3 mm
24.07″
Depth without stand
49.7 mm
1.96″
Weight (panel only – for VESA mount)
4.4 kg
9.70 lb”
Weight (with stand assembly and cables)
6.6 kg
14.55 lb
Weight (with packaging)
9.6 kg
21.16 lb
Power
Voltage Required
100 VAC to 240 VAC / 50 Hz or 60 Hz + 3 Hz / 2.5 A (Typical)
Power Consumption Normal operation
33 W (typical)
200 W (maximum)**
Power Consumption Stand by / Sleep
Less than 0.3W
**Maximum power consumption with maximum luminance and USB active
Environmental
Temperature Range
Operating: 0°C to 40°C (32°F to 104°F)
Non-operating: –20°C to 60°C (–4°F to 140°F)
Humidity Range
Operating: 10% to 80% (non-condensing)
Non-Operating: 5% to 90% (non-condensing)
Altitude
Operating: 5000 m (16,0404 ft) max
Non-Operating: 12,192 m (40,000 ft) max
Chassis
Adjustability
Height adjustable (130 mm)
Tilt (-5° to 21°)
Swivel (-45° to 45°)
Pivot (-90° to 90°)
PbP / PiP
No
Daisy Chain Availability
No
Dell Display Manager Compatibility
Yes, Easy Arrange, Other key features
Specifications – Service / Support Details
3-Year Advanced Exchange Service and Premium Panel Guarantee
Color Support
99% sRGB, 99% Rec 709, 95% DCI-P3, Delta E
Color Depth: 1.07 billion colors
Flat Panel Mount Interface
VESA mounting holes (100 mm x 100 mm -behind attached VESA cover)
Regulatory
Compliant Standards
ENERGY STAR Certified Monitor
EPEAT registered where applicable
RoHS Compliant
TCO Certified
BFR/PVC Free ( Halogen-free) (excluding external cables)
Meets NFPA 99 leakage current requirements
Arsenic-Free glass and Mercury-Free for the panel only
What’s Included
Monitor, Stand Riser, Stand Base
1 x Power cable
1 x Type-C ( C-C cable)
1 x DP Cable (DP to DP)
1 x USB Type -C to Type A cable
Quick setup guide
Safety, Environmental and Regulatory Information
Factory Calibration Report
Product Safety, EMC and Environmental Datasheets (in English)
Dell Regulatory Compliance Home Page (in English)
Dell and the Environment
