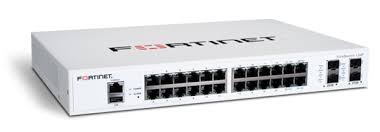

Fortinet FortiSwitch-124F 24 Ports Gigabit with 24x GE port + 4x SFP+

Description

FortiSwitch™ Secure Access

FS-124F
FortiSwitch-124F FortiSwitch-124F is a performance/price competitive switch with 24x GE port + 4x SFP+ port + 1x RJ45 console. Fanless design.

Warranty 1 Year





Security, Ease of Use, and Scalability
The FortiSwitch™ Access Family is tailored to meet the
unique demands of enterprise branch offices and small
businesses. An unparalleled combination of security, ease of
use, and scalability makes FortiSwitch™ the ideal choice for
Ethernet infrastructure.

Managing a remote enterprise branch or small business network can be a challenging task
due to various factors including a lack of visibility of connected devices, limited time and tools
for LAN management, and a shortage of skilled personnel. The FortiSwitch Secure Access
family seamlessly integrates Ethernet networking with advanced security features, effectively
eliminating the silos that hinder day-to-day management. Feature-rich and easy to manage
with a low total cost of ownership, FortiSwitch emerges as the optimal choice for remote
enterprise-branch and small-businesses Ethernet networks.



Secure Networking Through FortiLink
FortiLink is an innovative proprietary management protocol that enables seamless integration
and management between a FortiGate Next-Generation Firewall and the FortiSwitch Ethernet
switching platform. By using FortiLink, the FortiSwitch becomes a logical extension of the
FortiGate, allowing for centralized management of both network security and access layer
functions through a single interface.
Easy-to-use Network Access Control (NAC) at No Cost
FortiLink integration enables basic NAC functionality to profile and securely onboard devices
as they connect. FortiLink NAC offers visibility into all connected devices, automated
segmentation and security policies for IoT devices, quarantine if compromised, and virtual
patching to help protect against threats.

Specifications

Hardware Specifications
FORTISWITCH 124F
Hardware Specifications
Total Network Interfaces 24x GE RJ45 and 4x 10GE SFP+
Dedicated Management 10/100 Port 0
RJ-45 Serial Console Port 1
Form Factor 1 RU Rack Mount
Power over Ethernet (PoE) Ports 0
PoE Power Budget 0

Mean Time Between Failures > 10 years
System Specifications
Switching Capacity (Duplex) 128 Gbps
Packets Per Second (Duplex) 190 Mpps
MAC Address Storage 32 K
Network Latency < 1µs
VLANs Supported 4 K
Link Aggregation Group Size 8
Total Link Aggregation Groups 16
Packet Buffers 2 MB
Memory 512 MB DDR3
Flash 64 MB
ACL 640
Spanning Tree Instances 32
Dimensions

Dimensions
Height x Depth x Width (inches) 1.73 x 9.06 x 12.99
Height x Depth x Width (mm) 44 x 230 x 330
Weight 4.48 lbs (2.03 kg)

Environment
Power Required 100–240V AC, 50-60 Hz
Power Supply AC built in
Redundant Power No
Power Consumption* (Average / Maximum) 24.8 W / 26.3 W

Heat Dissipation 89.683 BTU/h
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -4°F to 158°F (-20°C to 70°C)
Humidity 10% to 90% non-condensing
Air-Flow Direction side-to-back
Noise Level Fanless

Certification and Compliance
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
