Description

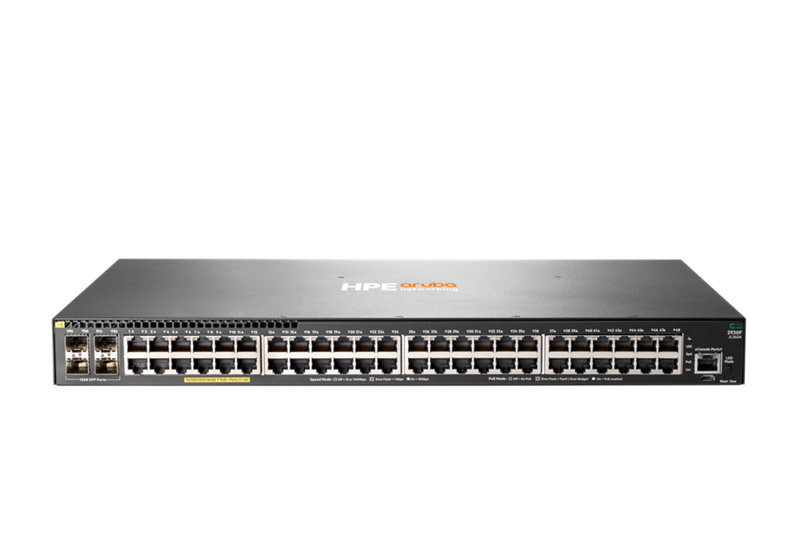

HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch
SKU # JL262A
The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
Maximize your HPE Aruba Networking 2930F Switch Series
What’s New
- Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave.
- Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support.
- Scale with 8 chassis VSF stacking.
- Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+.
SPECS
HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch
DifferentiatorPopular Aruba 52-port Gig access switch with 370 Watts PoE+ power.
This model has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.
Power consumption459 W (maximum)
Heat dissipation293 BTU/hr (309.1 kJ/hr)
Input voltage100 – 127 / 200 – 240 VAC, rated
Ports(48) RJ-45 autosensing 10/100/1000 PoE+ ports
(4) SFP
Latency1000 Mb Latency: < 3.8 µs
Switching capacity104 Gbps
Throughputup to 77.4 Mpps
Memory and processorDual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress
4 GB eMMC
PoE capability370 W PoE+
Management featuresAruba AirWave
Central Network Management
IMC – Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)
WarrantyLimited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
Weight4.46 kg (9.83 lb)
Dimensions4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in)
