Description

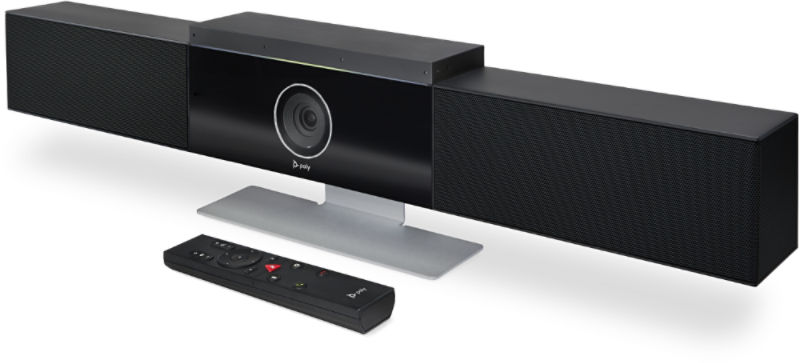

Poly STUDIO

PREMIUM USB VIDEO BAR

• Hear sound in meetings like never before
• Experience video that feels natural
• Keep it simple for IT to manage and deploy

POLY STUDIO FEATURES

Delivering the best audio quality in its class, Poly Studio lets teams on both ends of the call catch every word. You’ve never heard a USB video bar sound this good.

SPECIFICATIONS

DIMENSIONS

• Unit dimensions:
  • 105 mm x 700 mm x 70 mm = 4.2” x 27.3” x 2.8” (HxWxD) without stand
  • 156 mm x 700 mm x 70 mm = 6.2” x 27.3” x 2.8” (HxWxD) with stand
• Weight:
  • 5 lbs 2.6 oz (2342 g) without stand
  • 6 lbs 4.7 oz (2856 g) with stand
• Remote control dimensions:
  • 183 mm x 40 mm x 19 mm = 7.2” x 1.6” x .75” (HxWxD)

APPLICATION REQUIREMENTS

• Supported operating systems
  • Windows 7, 8.1, 10
  • MacOS 10.12, 10.13, 10.14
• Support for standard audio and video device drivers
  • UAC 1.0 Audio
  • UVC 1.1/1.5 Video
  • HID 1.11

• POWER REQUIREMENTS

• 12VDC/5A @ 100~240VAC, 50/60 Hz

POWER REQUIREMENTS

• 12VDC/5A @ 100~240VAC, 50/60 Hz

PACKAGE INCLUDES

• Poly Studio
• Remote control with 2 AAA batteries
• Power adapter
• 5 m USB 2.0 cable (Type-C to Type-A)
• Wall mount kit
• Setup sheet

OPTIONAL ACCESSORIES

• Expansion microphone
• Display mount

CAMERA

• 120-degree FOV
• UHD 2160p (4K) capture resolution
• Automatic people framing & speaker tracking
• 5x zoom / EPTZ
• 2 camera presets

AUDIO

• Poly Acoustic Clarity technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression
• Poly NoiseBlock technology
• Poly Acoustic Fence technology
• Mute/unmute controls
• Stereo microphones:
• 6-element beamforming microphone array
• 12 ft pickup range
• 120 Hz–16 kHz frequency response
• Stereo speakers:
• 100 Hz–20 KHz frequency response
• Output = 90 dB @ 0.5m

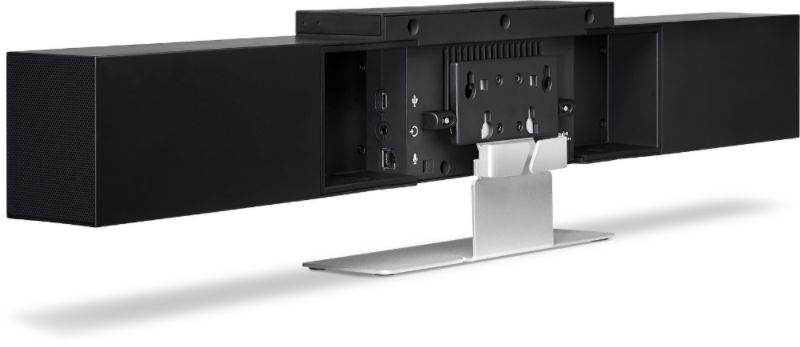

INTERFACES

• 1x USB 3.0 Type-C port (with 2.0 compatibility)
• Power connector
• Optional external microphone
• 3.5 mm stereo Audio In
• Kensington security lock
• 802.11ac Wi-Fi wireless networking for manageability; IEEE 802.11a/b/g/n compatible
• Bluetooth® 4.2

APPLICATION COMPATIBILITY

• Compatible with any application that supports standard USB audio and video drivers, including but not limited to:
  • Certified for Microsoft Teams and Skype for Business
  • Zoom Certified
  • LogMeIn GoToMeeting®
  • BlueJeans Network
  • Google Hangouts™ communication platform
  • Amazon Chime
  • Cisco Webex®
  • VidyoDesktop™
  • Polycom RealPresence Desktop

SECURITY

• 802.1x support
• Certification management

MANAGEABILITY (VIA WI-FI)

• Companion App (running on Win/Mac PC connected to device)
• RealPresence Resource Manager
• Device Management Service

WARRANTY INFORMATION

• 1-year limited hardware warranty

ENVIRONMENTAL

• Operating temperature: 32–104°F (0–40°C)
• Relative humidity: 5–95%, noncondensing
• Storage temperature: -13–160°F (-25°–70°C)
